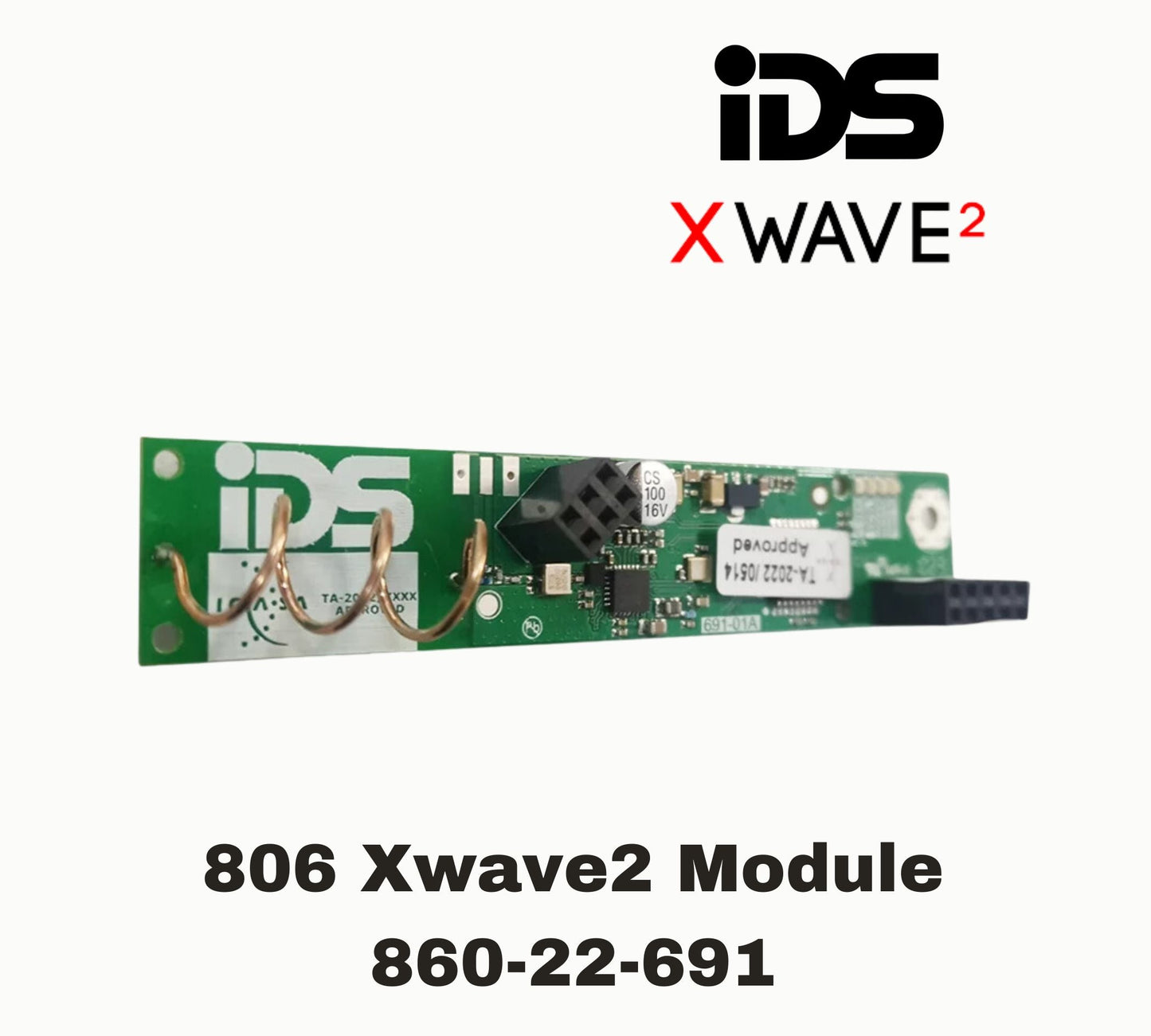

IDS Xwave2 Lite Module 860-22-691

Introduction:

The IDS Xwave2 Lite Transceiver module is a stackable board designed for the new generation IDS alarm system. It acts as a plug-on module that receives the IDS Xwave2 Lite protocol from IDS Xwave2 Lite detectors and remote transmitters.

Features:

- Power LED: Indicates when power is applied
- Panel LED: Flashes during communication with the panel
- Radio RX LED: Flashes when receiving data from a transmitter
- Radio TX LED: Flashes when transmitting data

Specifications:

- Frequency: 869.52 MHz
- Transmit RF Power: 14dBm
- Voltage: 9 – 12VDC
- Current: 25mA
- Range: Up to 300m line of sight

Notes:

- Please refer to the Installer manuals for the alarm system and the detector manuals for programming instructions.
