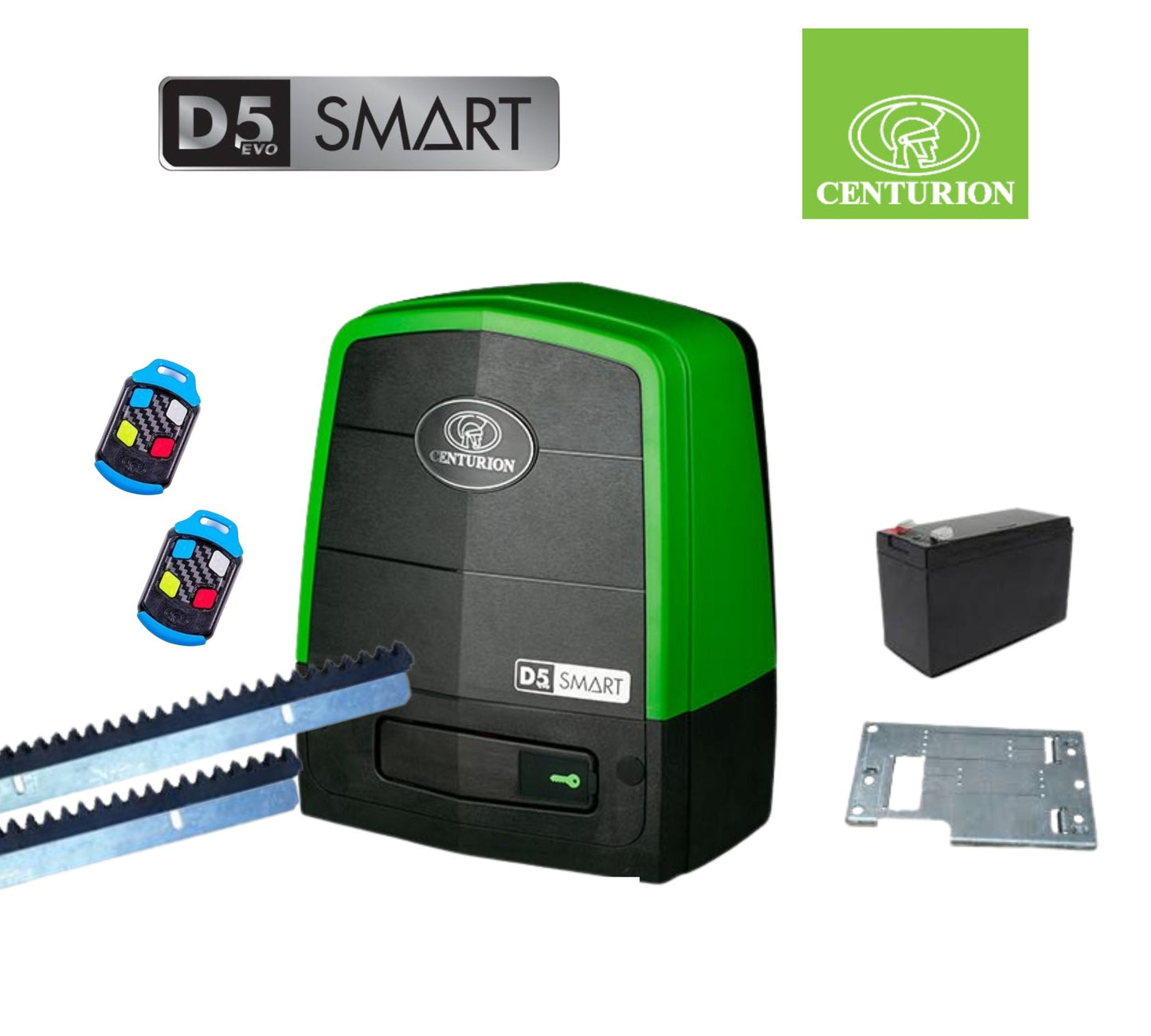

D5 EVO SMART Gate Motor Nylon Kit -incl. FOUNDATION PLATE

Kit Contents:

1 x D5 EVO SMART Gate Motor
2 x NOVA TX4 Remotes
2 x Rack - Nylon Angle Galvanised / 2m
1 x 12V 7Ah Sealed Lead Acid Battery
20 x TEK SCREW - 12X25mm
1 x D5 EVO SMART Foundation Plate incl fasteners

The D5-Evo SMART is a domestic and light-industrial gate motor that combines reliability and performance with smart features. It is powered by award-winning technology and offers enhanced security features for ultimate peace of mind.

Key Features:

1.  Seamless Control: Manage your gate using a user-friendly smartphone app.
2.  Intelligent Insights: Receive advanced notifications, alarms, and monitoring to stay informed.
3.  Uninterrupted Security: Dependable battery-driven technology ensures operation during power outages.
4.  Effortless Setup: Wireless configuration and smartphone control make installation easy.
5.  Enhanced Security: Improved theft-deterrent cage and position control system offer peace of mind.
6.  Ultimate Versatility: Configurable inputs and outputs for integration with your smart ecosystem.

Technical Specifications:

.   Input Voltage: 110V - 240V AC 50/60Hz
.   Current Consumption (Mains): 320mA peak
.   Battery Charger Output: 1.8A @ 14.3V +/- 5%
.   Maximum Operations per Day: 150
.   Motor Power Supply: Battery-driven (12V)
.   Maximum Gate Mass:500kg
.   Gate Length: Up to 20m
.   Gate Speed: Up to 24m/min
.   Receiver Frequency: 433.92MHz
.   Degree of Protection: IP55

Note: This equipment is compliant with the radiated emissions requirements of EN 55032 / CISPR 32 for Class B devices.

Additional Notes:

.   Can be operated off a solar supply (consult your local dealer).
.   Gate opening and closing speeds can be configured based on installation requirements.
.   Battery capacity can be increased for longer standby times.
.   Receiver code storage capacity: 1500 remotes.

For further assistance or detailed information, consult your local dealer or contact the manufacturer.
