Centurion D3 SMART Gate Motor Nylon Kit with Foundation Plate

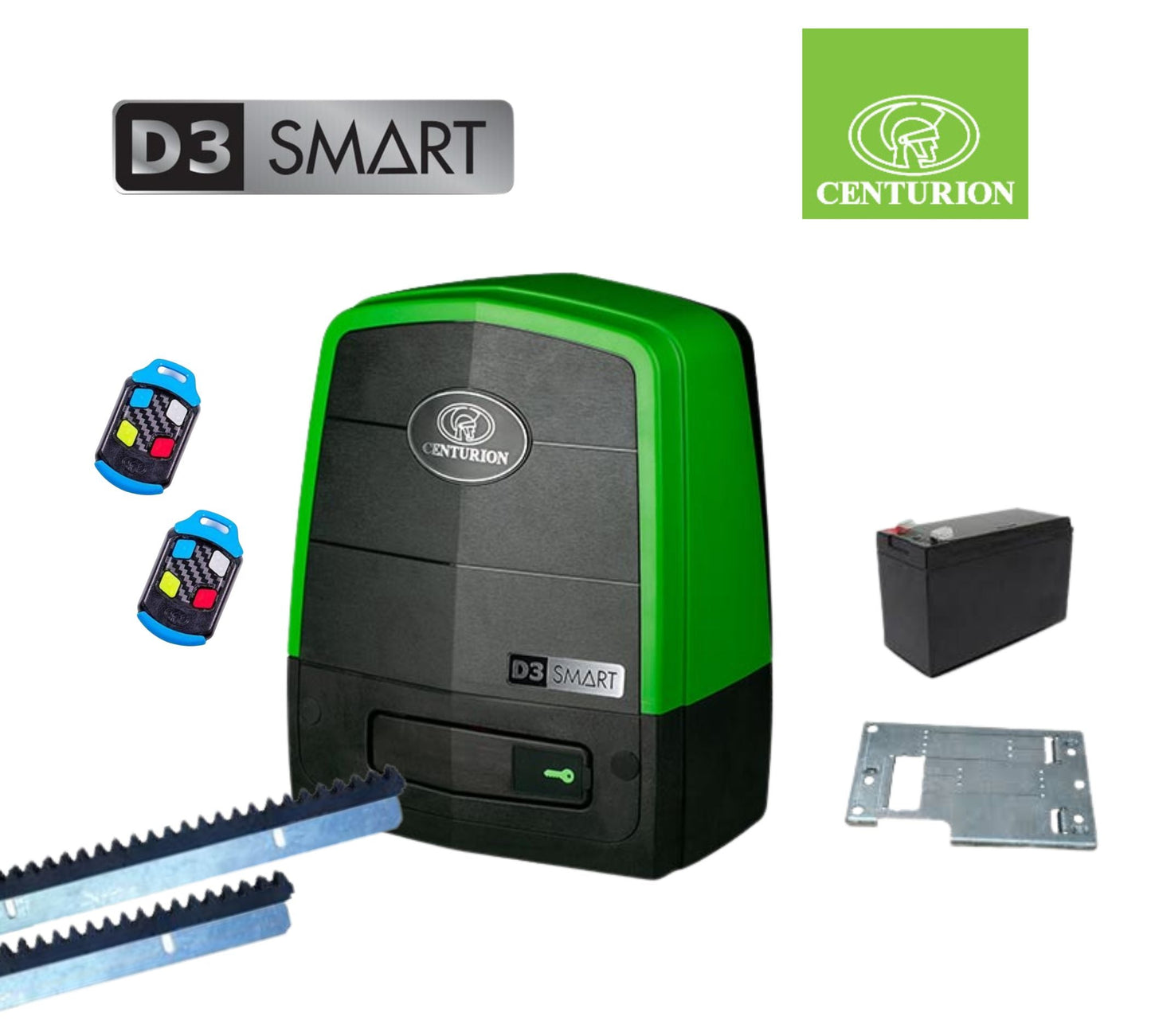

Kit Contents:

1 x D3 SMART Gate Motor
2 x NOVA TX4 Remotes
2 x Rack - Nylon Angle Galvanised / 2m
1 x 12V 7Ah Sealed Lead Acid Battery
20 x TEK SCREW - 12X25mm
1 x D3 SMART Foundation Plate incl. fasteners

The Centurion D3 SMART gate motor offers a host of features and benefits to enhance the security and convenience of your home. Here are some key highlights and technical specifications outlined for your reference

Key Features:

1.  Fast and Secure: Open your gate quickly and keep unwanted visitors away.
2.  Smart Control: Manage your gate easily with the user-friendly smartphone app.
3.  Easy Installation: Installer-friendly design saves time and effort during setup.
4.  Reliable Performance: Battery-driven technology ensures dependable operation.
5.  Intelligent Features: Receive advanced alerts and notifications for enhanced control.
6.  Peace of Mind: Improved theft-deterrent cage for added security.
7.  Convenient Operation: Effortless smartphone setup and manual release function.
8.  Wireless Safety: Compatible with Photon SMART Beams for a complete wireless experience.

Technical Specifications:

.   Input Voltage: 110V - 240V AC 50/60Hz
.   Current Consumption (Mains): 320mA peak
.   Battery Charger Output: 1.8A @ 14.3V +/- 5%
.   Maximum Operations per Day: 20
.   Duty Cycle (Mains Present): 25%
.   Motor Power Supply: Battery-driven (1x12V)
.   Motor Push Force (Starting): 18kgf
.   Motor Push Force (Rated): 12kgf
.   Maximum Gate Mass: 300kg
.   Gate Speed: Up to 24m/min (maximum)
.   Operating Temperature Range: -15°C to +50°C
.   Receiver Frequency: 433.92MHz
.   Degree of Protection: IP55
.   Mass of Unit Packed: 6.7kg

Note:

.   The gate motor can operate off a solar supply (consult your local dealer for assistance).
.   Gate opening and closing speeds can be configured as needed for individual installations.
.   Compliance: The equipment meets the radiated emissions requirements of EN 55032 / CISPR 32 for Class B devices, providing protection to broadcast services in residential environments.

Upgrade your home security effortlessly with the Centurion D3 SMART gate motor, offering a blend of advanced technology and user-friendly operation.
